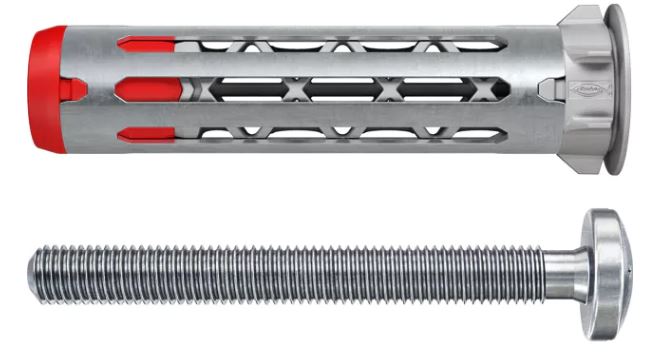

the duohm mount can be quickly and efficiently installed using a cordless screwdriver and without any additional tools. this reduces installation time by 50% compared to other popular board mounts. the unique 2-component technology enables high load-bearing capacities. the metal sleeve presses against the back of the board and the plastic part loops into the substrate. one plug length is used for all common types of building boards with a thickness of 9.5 - 30 mm making this solution universal and economical. due to the internal metric thread the screws can be screwed and unscrewed several times. anti-rotation protection ensures proper installation and prevents damage to the substrate material. the narrow edge of the plug is invisible beyond the attached element. the duohm plug is suitable for use in all common building boards from 9.5 to 30 mm using just one plug length. thanks to its unique combination of nylon and metal the duohm enables high loads and maximum flexibility in board-type building materials. the metal sleeve extends behind the building material and presses against the back of the board while the nylon part loops into the substrate. the duohm is installed quickly and easily using a cordless screwdriver without additional installation tools. This reduces installation time by up to 50% compared to conventional board plugs. thanks to the metric internal thread the fixing can be screwed in and out repeatedly. in addition to the supplied screw the duohm can also be used with other metric screws. the nylon anti-rotation lock protects the surface of the building material from damage. the narrow edge of the plug makes the anchor invisible behind the fixing. nominal drill diameter (d0)10 mm.min. Hole depth (h1)55 mm.anchor length (l)55 mm.screw dimensions (ds x ls)5.0 x 55 mm.anchor plate thickness (dp)9.5 - 30 mm.socketpz2.max. Thickness of the fixed element (t fix)10 mm.min. Depth of cavity (a)45 mm.contents25 x duohm 5 x 55 25 x screw m5 x 55.quantity25 st.
