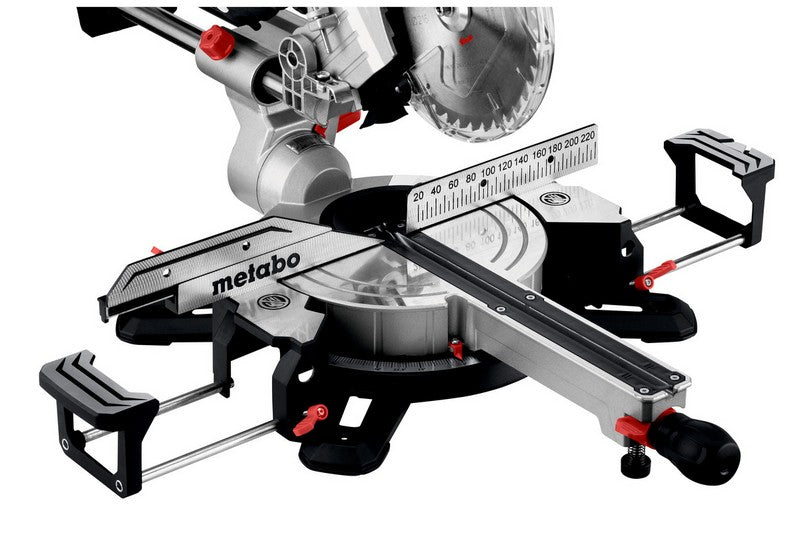

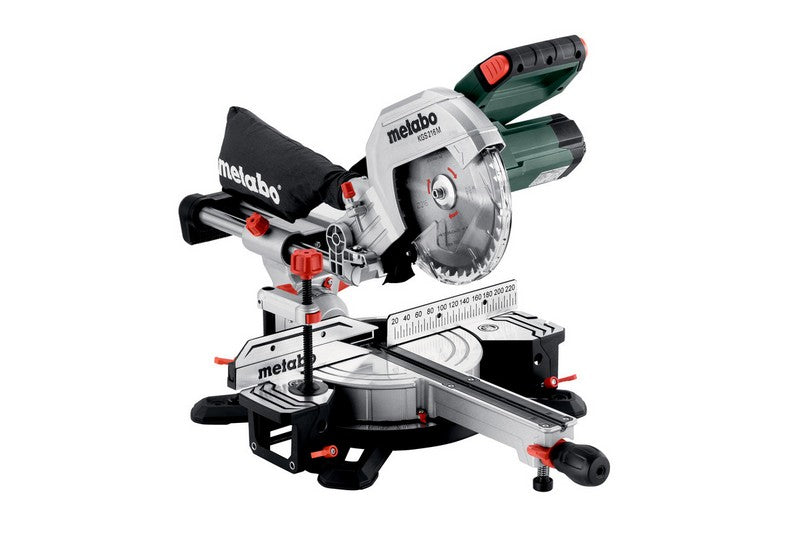

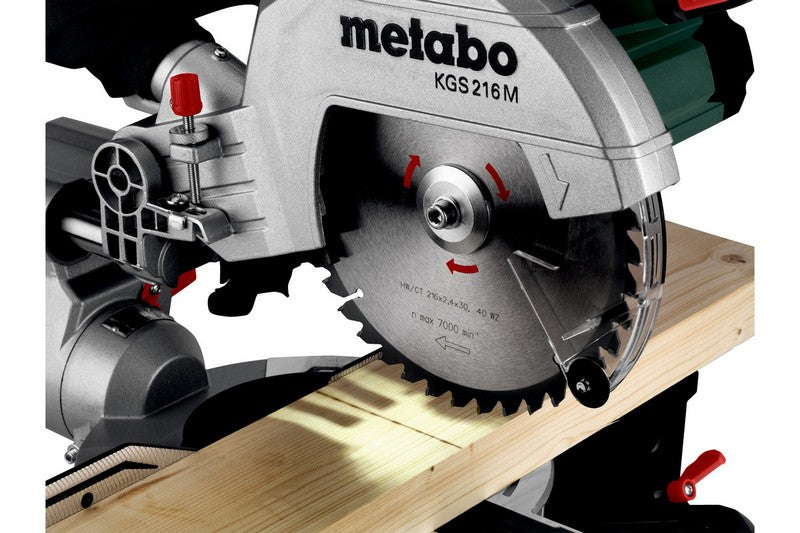

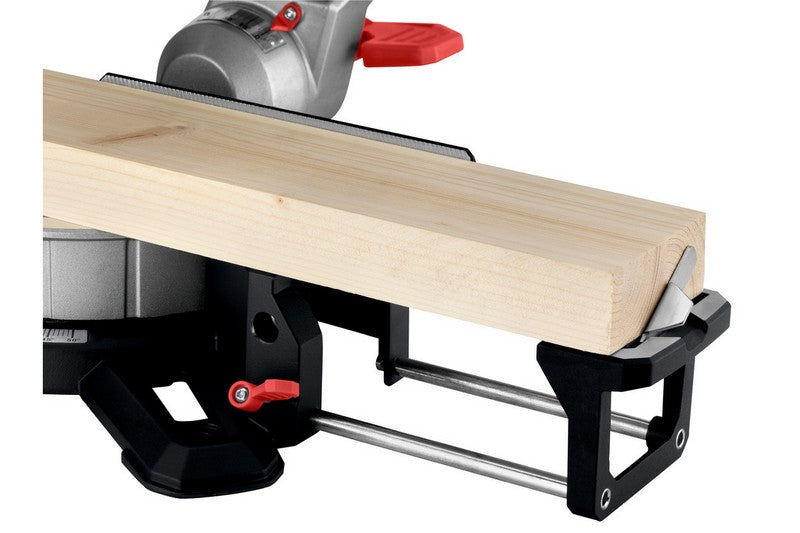

technical data:parametersdimensions: 710 x 476 x 512 mmstorage surface: 345 x 730 mmmax. Cutting width 90°/45°: 305 / 215 mmmaximum cutting depth 90°/45°: 70 / 40 mmcutting thickness 90°/90°: 305 x 70 mmcutting thickness 45°/45°: 215 x 40 mmturntable adjustment left/right: 50 / 50 °circular saw blade tilt left/right: 47 / 2 °circular saw blade: 216 x 30 mmrated power: 1200 wrated power s1 100%: 1200 wrated power s6 20%: 1500 widle speed: 5000 /minrotation speed under load: 3750 /mincutting speed: 57 m/sweight: 13.4 kgcable length: 2 mnoise emissionsound pressure level 85 db(a)sound power level (lwa) 98 db(a)measurement uncertainty coefficient k3 db(a)mitre saw kgs 216 m angle and mitre saw in the mobile m class with feed function - light precise user-friendlyprecision cut line (pcl): precise cutting line without the need for additional adjustment thanks to a cleverly placed ledhigh cutting capacity thanks to the feed function for wide workpiecesrotary table with quick and precise setting of the most frequently used angles thanks to the detent pointsthe possibility of tilting the saw blade from -2 to 47° allows for making back cutsthe massive die-cast aluminum construction allows for the heaviest taskseffective chip extraction through the integrated extraction socketsoft start function extends the service life of the motor and gearextendable table extensions also removable to support very long workpiecesquick clamp for securely fastening the workpiece from above or from the frontdepth stop allows for groovingall scales and operating elements are clearly visible from the workstationergonomic grip surfaces allow for carrying with one or both handsscope of delivery:circular saw precision cut wood - classic 216x30 z402 integrated table extensionslength stopworkpiece clampcircular saw blade replacement keycable reelswarf bag**
