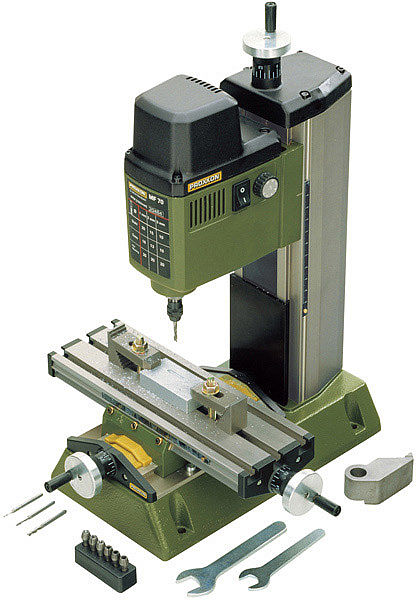

Proxxon Mf70 Milling Machine

technical data:220 – 240 v 100 w 50/60hz.speed ​​from 5000 to 20000 rpm.table dimensions 200 x 70 mm. traverse capacity: along the x axis – 134 mm along the y axis – 46 mm and vertically 80 mm. base: 13 0x 225 mm. total height 370 mm. weight approx. 7 kg. mounting brackets included.for working with very small milling cutters. Base made of gray cast iron. With a vertical column and a coordination table made of high-quality aluminum. the table can be moved using adjustable guides. Die-cast aluminum head with a special (balanced) motor that is stable even at the highest operating speeds.this feature enables the use of even the smallest milling cutters. Tools are clamped using micromot tool clamps (hardened steel three-jaw) one each of 1 – 1.5 – 2 – 2.4 – 3 – 3.2 mm.the table has three t-slots measuring 12 x 6 x 5 mm (according to the micromot standard).an adjustable guide with a scale makes it easy to position the workpiece. All knobs are manual with a zero scale. One full revolution = 1 mm one division = 0.05 mm.**illustrative photo
