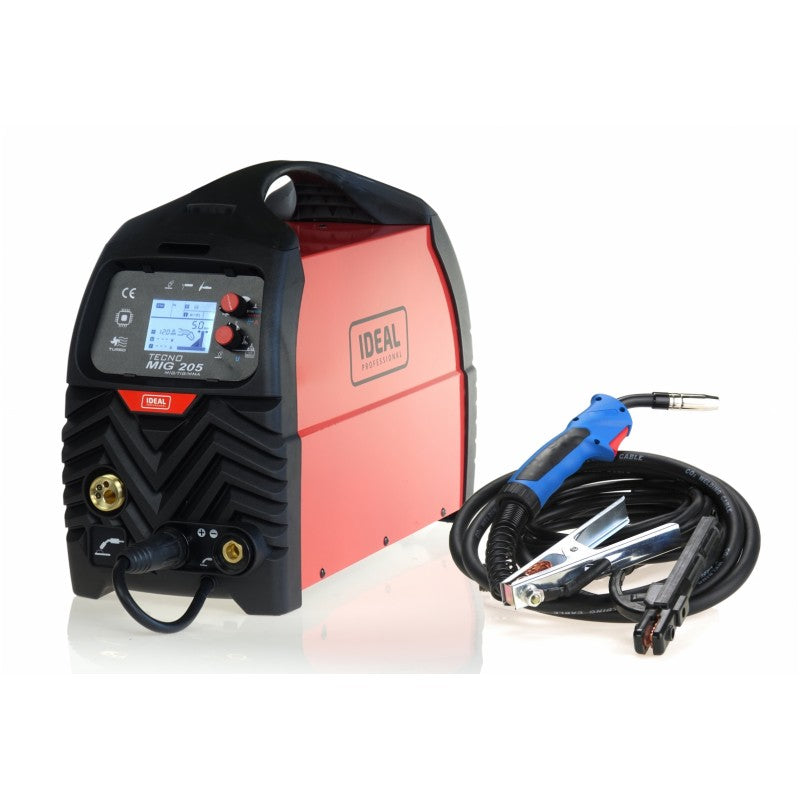

technical data:current drawn from the mains: 20.3amains protection: 25crated supply voltage: 230 v 50hz (1ph)power 6.4 kwopen circuit voltage 64 vmaximum current 200 a (mig) / 150 a (tig/mma)current at 100% duty 160 a (mig)current at 60% duty 200 a (mig)aluminum wire diameter 0.8 - 1.0 mmbrace welding wire diameter 0.8 - 1.0 mmself-shielding wire diameter 0.8 - 1.2 mmsteel wire diameter 0.6 - 1.0 mm stainless steel wire diameter 0.8 - 1.0 mm welding electrode diameter 1.6 - 3.2 mm welding current adjustment steps stepless welding current adjustment range 35 - 200 a (mig) / 20 - 150 a (mma/tig) current drawn from the mains 20.3 a mains protection 25c rated supply voltage 230 v 50hz (1ph) wire spool size 0.45 - 5 kg ip 23s protection class weight of the device / set 15/16 kg overall dimensions l x w x h 540x240x385 mm tecnomig the 205 lcd synergic is an inverter synergistic semi-automatic welding machine designed for arc welding using the mig/mag tig lift mma and flux methods. the device is designed for a wide range of applications: from maintenance to car body repairs. the tecnomig 205 lcd is used for brazing galvanized sheets stainless steel carbon and low-alloy steels and aluminum. welding takes place in an inert active or mixed gas shield and in reverse polarity without gas. quick synergistic adjustment of welding parameters via the lcd display makes the device very easy to use. simply set the thickness of the material being welded and start welding: the intelligent and automatic arc control system will select the best parameters step by step for each welding position and each material. the user can also manually set the welding arc length and adjust the weld appearance to suit their needs. the set includes:mig 15 welding torch 3 m long ground cable 2 m long electrode cable 2 m long **illustrative photos.
