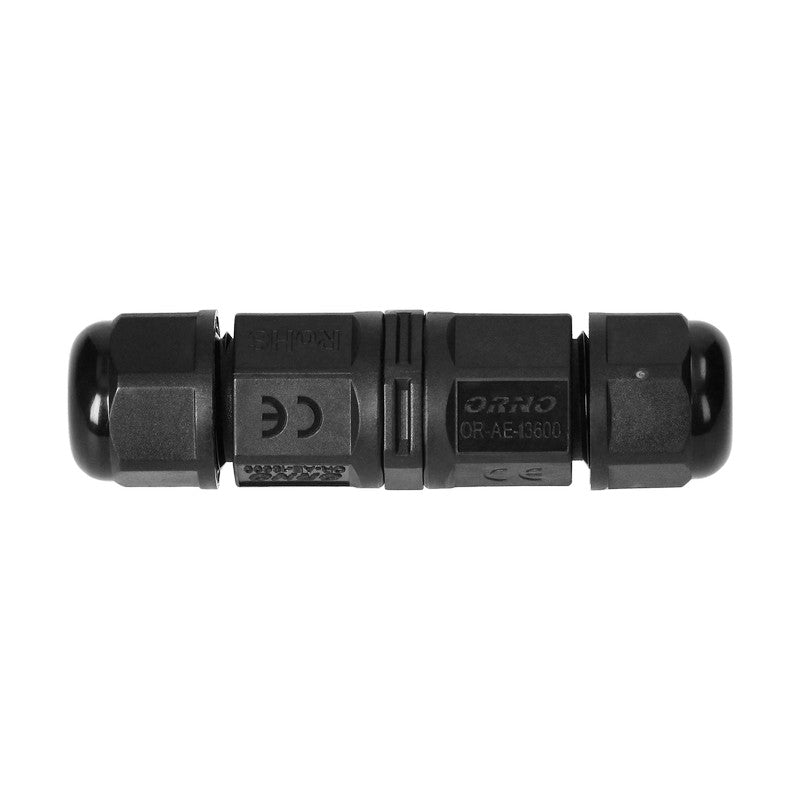

Straight Mini Cable Connector Ip68 3x1.5mm2

technical data:connector type: straight mininumber of wires: 3cable cross-section: 1.5mm2current: 16acable diameter: 4-8mmrated voltage: 450protection degree (ip): 68contact material: nickel-plated brassflame-retardant housing: yesuv radiation resistance: yeshousing flammability class ul94: v1dimensions - length (mm): 76mmconnection type: screwpossibility of mounting in the ground: yesdimensions - width: 20mmhousing material: pa6mini cable connector with a simple shape and very small dimensions. The high ip68 tightness rating protects against external factors and the innovative o-ring seal protects the seal from damaging external chemical and mechanical conditions.the material used to manufacture the connector is uv-resistant and suitable for outdoor use. The rigid and compact construction and innovative seal enable installation in the ground. The contacts are made of brass additionally protected against oxidation with a layer of nickel. The gland is equipped with a thick gasket that thoroughly seals the inserted wires.**
