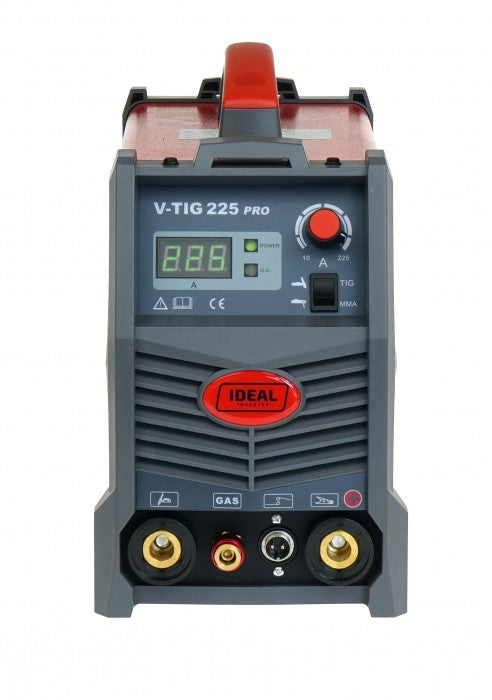

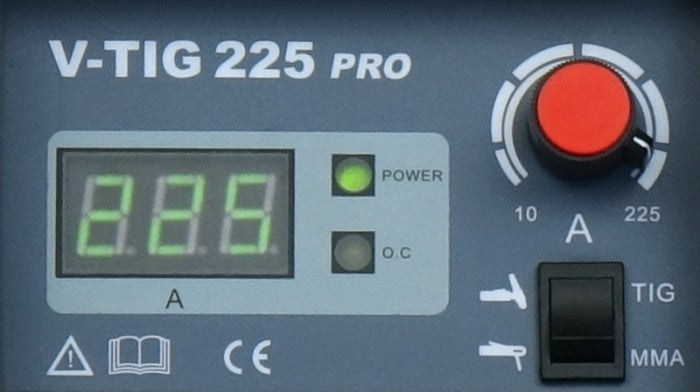

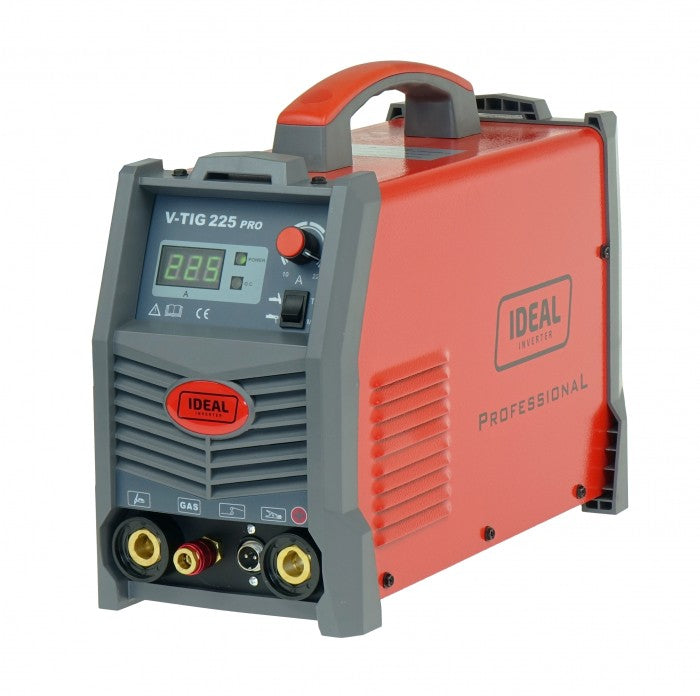

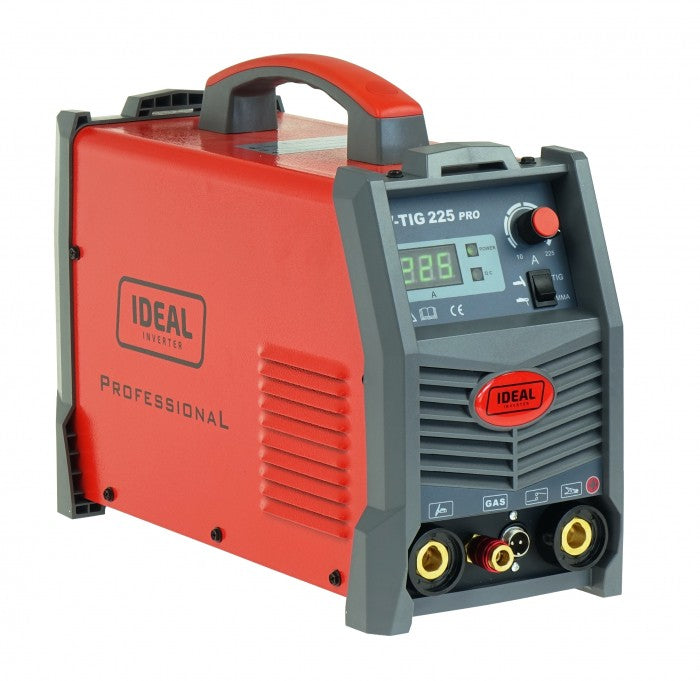

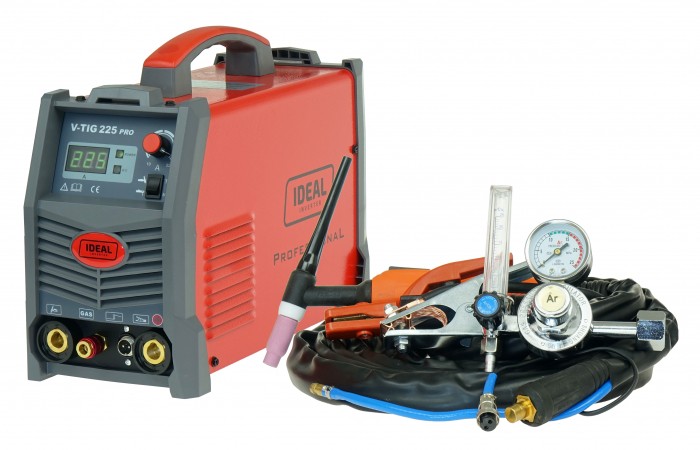

technical data:current drawn from the mains: 23 amains protection: c25rated supply voltage: 230 v 50hz (1ph)power: 5.3 kwopen-circuit voltage: 42 vcurrent at 60% operation: 200 awelding electrode diameter: 1.6 - 4.0welding current adjustment range: 10 - 200 a (max 225 a)protection degree: ip 21weight: 9 kgpackaging dimensions l x w x h: 445x260x350 mmv-tig 225 pro + tig set is a portable power source made in the technology mosfet designed for tig and mma welding with a coated electrode using direct current (dc). The device is ideal for workshop work. the device has two welding modes: tig dc and mma.the tig dc function is used for welding stainless steel carbon and low-alloy steels copper and titanium. Welding takes place in an inert gas shield.the arc is ignited in non-contact (hf) or contact (lift) mode. The lift function is used when welding in an environment with a high risk of electromagnetic interference.the digital display facilitates precise adjustment of the welding machine:the welding machine also has functions that facilitate the process of mma welding with a coated electrode:arc force: short circuit current regulation - facilitates the transfer of a drop of molten electrode to the welded material preventing the arc from being extinguished when the electrode drop comes into contact with the weld poolhot start: hot start regulation - facilitates the ignition of the electrode by providing a higher welding current with each arc ignition.anti stick: short circuit protection - automatically switches off the welding voltage if the electrode sticks to the welded material which facilitates its separation and prevents the accidental formation of a welding arcphysical parametersthe device has a fan cooling system which significantly increases its efficiency.quick gas connection connector to the welding torch allows for immediate connection and disconnection of the welding torch without the use of tools.the device is equipped with overload protection which increases its reliability.power supply parameterssingle-phase 230v power supply. The device is equipped with a power plug.equipmentthe delivery includes a device with a complete set of tig and mma accessories: a 4-meter tig 26 welding torch a 3-meter mma electrode cable and a 3-meter ground cable.**illustrative photo
